Motion sensors are like watchful guardians, constantly scanning their environment for changes and movements. The way they achieve this depends on the specific type of sensor technology used. Here’s a breakdown of the most common types and their working principles:

A) Passive Infrared (PIR) Sensors:
➡️Heat Sensing: PIR sensors are the most common type found in homes and security systems. They detect changes in infrared radiation (heat) emitted by objects in their field of view.
➡️Body Heat Detection: When a warm body, like a person or animal, moves across the sensor’s range, it causes a change in the infrared energy pattern. The sensor detects this change and triggers an alert or response.
➡️Limited Scope: PIR sensors are typically limited to detecting movement within a specific range and field of view, often in a straight line.

B) Microwave Sensors:
➡️Doppler Effect: These sensors emit microwave pulses and measure the reflection off objects in their path. When an object moves, the reflected waves change frequency due to the Doppler effect.
➡️Wide Coverage: Microwave sensors can detect movement through walls and over larger areas compared to PIR sensors.
➡️Sensitivity Concerns: They can be more sensitive and prone to false alarms triggered by small movements or vibrations.

C) Ultrasonic Sensors:
➡️Sound Waves: These sensors emit ultrasonic sound waves and measure the time it takes for the waves to bounce back after hitting an object.
➡️Movement Detection: When an object moves, the reflected sound waves return at a different frequency, indicating movement.
➡️Range Limitations: Ultrasonic sensors typically have a shorter range than PIR or microwave sensors and can be affected by environmental factors like wind or temperature changes.

D) Dual Technology/Hybrid Sensors:
➡️Combined Forces: These sensors combine two or more detection technologies, often PIR and microwave, to improve accuracy and reduce false alarms.
➡️Enhanced Reliability: Movement needs to be detected by both technologies for the sensor to trigger, minimizing false positives caused by environmental factors or small, non-human movements.

E) Additional factors influencing sensor operation:
➡️Sensitivity settings: Adjusting the sensor’s sensitivity can help fine-tune its detection capabilities and reduce false alarms.
➡️Mounting location: Placement plays a crucial role in the sensor’s effectiveness. Consider the sensor’s range, field of view, and potential obstacles when installing.
➡️Environmental conditions: Extreme temperatures, direct sunlight, or strong drafts can affect the performance of some sensor types.
➡️Understanding how different motion sensors work allows you to choose the right type for your specific needs and ensure optimal performance in your application.

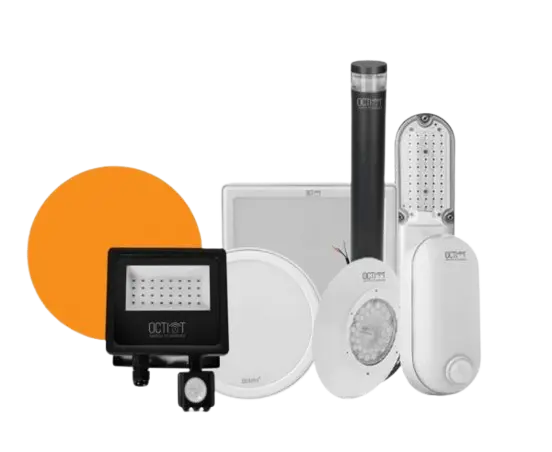

Motion sensor LED lights combine the energy efficiency of LEDs with the convenience of automatic activation, making them a popular choice for both indoor and outdoor applications. Here’s how they work:

The Basic Setup:

➡️Motion Sensor: The light fixture incorporates a motion sensor, typically a PIR (Passive Infrared) sensor, which detects changes in infrared radiation emitted by moving objects (people, animals) within its field of view.
➡️Control Circuit: When the sensor detects motion, it sends a signal to the control circuit within the light fixture.
➡️LED Driver: The control circuit activates the LED driver, which regulates the power supply to the LEDs, turning them on.
➡️Illumination: The LEDs illuminate the area, providing light for a predetermined duration or as long as motion is detected.

Additional Features and Functionalities:

➡️Light Sensor: Many motion sensor LED lights also include an ambient light sensor. This sensor prevents the light from activating during daylight hours, conserving energy.
➡️Timer Settings: Users can often adjust the duration for which the light stays on after motion is no longer detected.
➡️Sensitivity Adjustment: Some models allow adjusting the sensor’s sensitivity to fine-tune its detection range and reduce false triggers.
➡️Dimming Options: Certain lights offer dimming capabilities, allowing users to adjust the brightness level when the light is activated.

Benefits of Motion Sensor LED Lights:

➡️Energy Savings: Lights only activate when needed, reducing energy consumption compared to constantly lit fixtures.
➡️Convenience: Automatic illumination provides hands-free operation, ideal for areas like hallways, entryways, or bathrooms.
➡️Security: Sudden illumination can deter intruders and enhance security around homes and buildings.
➡️Safety: Lights automatically activate in dark areas, preventing potential accidents and improving visibility.

Applications:

➡️Indoor: Hallways, stairways, bathrooms, closets, basements, garages.
➡️Outdoor: Porches, patios, driveways, walkways, gardens, security lighting.

Choosing Motion Sensor LED Lights:

➡️Detection Range and Coverage: Consider the area you want to cover and select a light with an appropriate detection range and field of view.
➡️Mounting Location: Choose a light designed for the intended mounting location (wall, ceiling, post).
➡️Power Source: Opt for battery-powered lights for easy installation or hardwired options for permanent fixtures.
➡️Additional Features: Consider features like ambient light sensors, timer settings, and dimming options based on your preferences.

By understanding the functionality and benefits, you can effectively integrate motion sensor LED lights into your environment and enjoy the convenience, energy savings, and enhanced safety they offer.

Choosing the Best Outdoor Motion Sensor: A Balancing Act Selecting the ideal outdoor motion sensor depends on several factors, including your specific needs, environment, and budget. Here’s a breakdown of key considerations to help you make an informed decision:

Sensor Types:
⚫PIR (Passive Infrared)
⚫Microwave
⚫Dual Technology/Hybrid

Additional Factors:

1. Detection Range and Coverage: Choose a sensor with a detection range that adequately covers your desired area. Consider the sensor’s field of view (horizontal and vertical) to ensure comprehensive coverage.
2. Sensitivity Adjustment: Opt for a sensor with adjustable sensitivity to fine-tune its responsiveness and minimize false triggers from small animals or windblown objects.
3. Weather Resistance: Ensure the sensor has an appropriate IP (Ingress Protection) rating for outdoor use, indicating its resistance to dust and water.
4. Mounting Options: Select a sensor with mounting options suitable for your intended location (wall, eave, post).
5. Power Source: Choose between battery-powered models for easy installation and flexibility or hardwired options for permanent fixtures and consistent power supply.
6. Smart Features: Consider additional features like wireless connectivity, app control, and integration with smart home systems for added convenience and functionality.

Popular Outdoor Motion Sensor Options:

1. Heath Zenith HZ-5411-WH: A budget-friendly PIR sensor with adjustable sensitivity and a wide detection range.
2. Maxsa Innovations Motion-Activated Security Spotlight: Dual-head LED floodlights with a PIR sensor and adjustable settings.
3. Ring Smart Lighting Floodlight Battery: A battery-powered option with a PIR sensor, LED floodlights, and smart features like app control and customizable motion zones
